| Specifications | |||
| Number of Pins: | 8 Pins | Key Position: | - |
| Left Connector: | RJ45 Plug | Right Connector: | RJ45 Plug |
| AWG Gauge: | 22 AWG ~ 26 AWG | Connection Type: | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PC | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | Copper Alloy, Nickel & Gold-Plated | Sealing: | - |
| Shielding: | Shield | Overmolding: | PVC |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC / TPE |
| Technical Characteristics | |||
| Rated Current: | 2A | Rated Voltage: | 60V |
| Rated Temperature: | -25°C ~ + 85°C | Flame Retardant Grade: | VW-1 / UL94V-0 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | IPC 620 |
| Application | |||
Cable Harness Solution Bomcan | |||

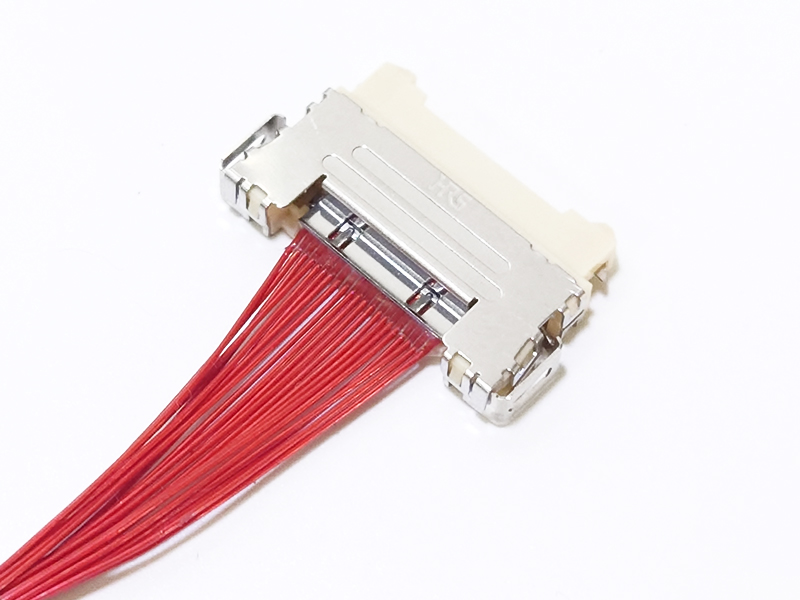

LVDS CABLE
Model: LVDS01
Specification: LVDS CABLE
Size:
Price:
Function: LVDS CABLE
Specification: LVDS CABLE
Size:
Price:
Function: LVDS CABLE
Product Introduction
