PRODUCTS

HIROSE DF13-20DS-1.25C / DF13-30DS-1.25C / DF13-40DS-1.25C DF13 LOCKING LVDS CABLE HARNESS CUSTOMIZED

Specifications Number of Pins: 20 Pins Key Position: - Left Connector: DF19G-20S-1C Right Connector: DF19G-20S-1C AWG Gauge: 40 AWG Connection Type: Plug and unplug Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: - Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 0.5A Rated Voltage: 30V Rated Temperature: -40°C ~ + 80°C Flame Retardant Grade: VW-1 Insulation Resistance: ≥ 1000 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: - Production Design Standards:

IPC620

">HIROSE DF13-20DS-1.25C / DF13-30DS-1.25C / DF13-40DS-1.25C DF13 LOCKING LVDS CAB···

AMPMODU 280512 HOUSING SINGLE ROW 9POS FEMALE SOCKET WIRING HARNESS CUSTOMIZATION

Specifications Number of Pins: 9 Pins Key Position: - Left Connector: 280512 Right Connector: - AWG Gauge: 30AWG~22AWG Connection Type: - Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: Copper Alloy,Nickel-Plated Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 1A Rated Voltage: 300V Rated Temperature: -25°C ~ + 80°C Flame Retardant Grade: UL94V-2 Insulation Resistance: ≥ 100 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: CE, RoHS Production Design Standards:

IPC620

">AMPMODU 280512 HOUSING SINGLE ROW 9POS FEMALE SOCKET WIRING HARNESS CUSTOMIZATIO···

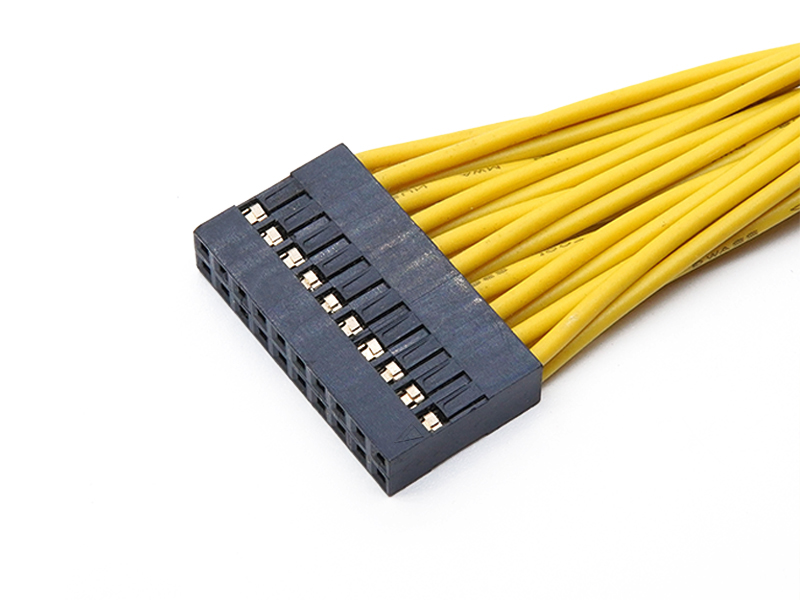

DUPONT2.54 HOUSING DOUBLE ROW FEMALE SOCKET TEST WIRING HARNESS CUSTOMIZATION

Specifications Number of Pins: 1~40 Pins Key Position: - Left Connector: Dupont2.54 Right Connector: - AWG Gauge: 30AWG~22AWG Connection Type: - Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: Copper Alloy,Nickel-Plated Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 1A Rated Voltage: 300V Rated Temperature: -25°C ~ + 80°C Flame Retardant Grade: UL94V-2 Insulation Resistance: ≥ 100 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: CE, RoHS Production Design Standards:

IPC620

">DUPONT2.54 HOUSING DOUBLE ROW FEMALE SOCKET TEST WIRING HARNESS CUSTOMIZATION

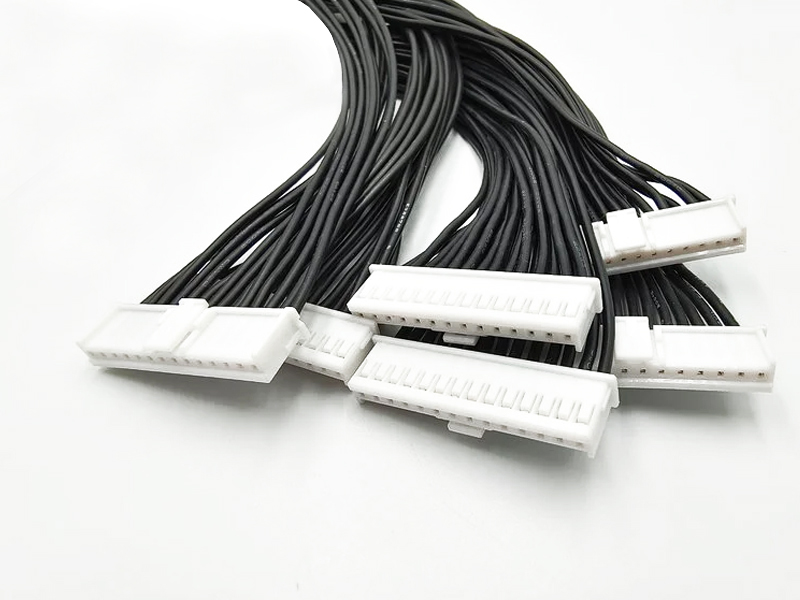

JST XAP-15V-1 HOUSING WIRING HARNESS CUSTOMIZATION

Specifications Number of Pins: 2~15 Pins Key Position: - Left Connector: JST XAP Right Connector: - AWG Gauge: 30AWG~22AWG Connection Type: - Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: Copper Alloy,Nickel-Plated Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 1A Rated Voltage: 300V Rated Temperature: -25°C ~ + 80°C Flame Retardant Grade: UL94V-2 Insulation Resistance: ≥ 100 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: CE, RoHS Production Design Standards:

IPC620

">JST XAP-15V-1 HOUSING WIRING HARNESS CUSTOMIZATION

MOLEX 510211500 HOUSING WIRING HARNESS CUSTOMIZATION

Specifications Number of Pins: 2~15 Pins Key Position: - Left Connector: Molex 51021 Right Connector: - AWG Gauge: 30AWG~26AWG Connection Type: - Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: Copper Alloy,Nickel-Plated Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 1A Rated Voltage: 300V Rated Temperature: -25°C ~ + 80°C Flame Retardant Grade: UL94V-2 Insulation Resistance: ≥ 100 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: CE, RoHS Production Design Standards:

IPC620

">MOLEX 510211500 HOUSING WIRING HARNESS CUSTOMIZATION

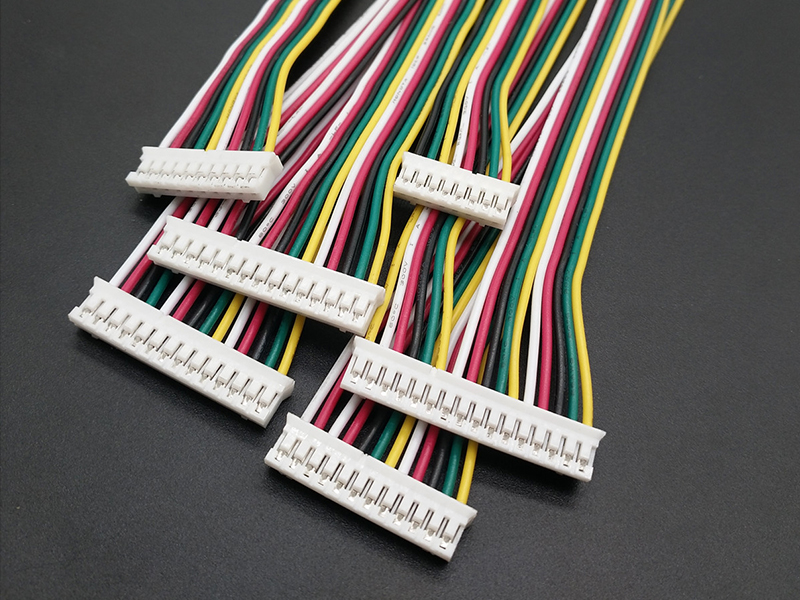

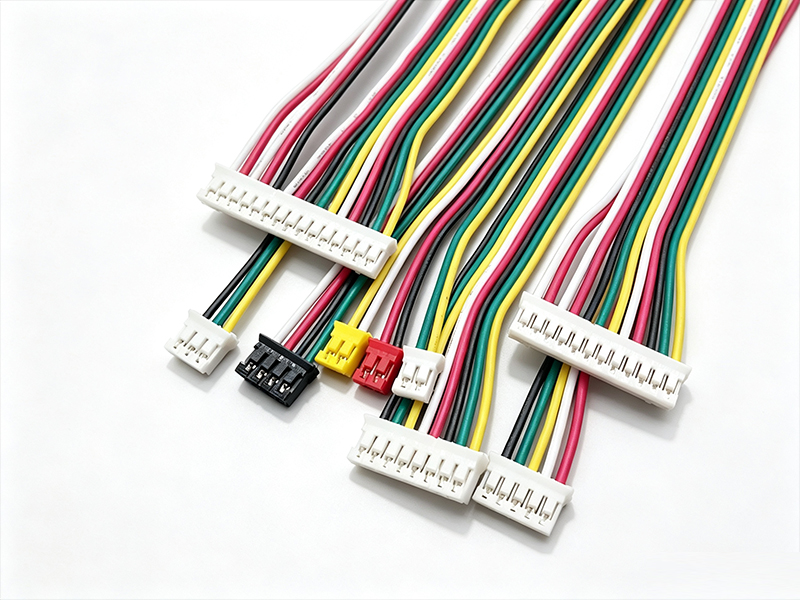

JST PHR-15 HOUSING WIRING HARNESS CUSTOMIZATION

Specifications Number of Pins: 2~15 Pins Key Position: - Left Connector: JST PHR Right Connector: - AWG Gauge: 30AWG~24AWG Connection Type: - Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: Copper Alloy,Nickel-Plated Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 1A Rated Voltage: 300V Rated Temperature: -25°C ~ + 80°C Flame Retardant Grade: UL94V-2 Insulation Resistance: ≥ 100 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: CE, RoHS Production Design Standards:

IPC620

">JST PHR-15 HOUSING WIRING HARNESS CUSTOMIZATION

JST XHP-15 HOUSING INTERNAL WIRING HARNESS CUSTOMIZATION

Specifications Number of Pins: 2~15 Pins Key Position: - Left Connector: JST XHP Right Connector: - AWG Gauge: 30AWG~22AWG Connection Type: - Wires & Cables Length: Customization length Material Housing & Insulation: PBT Contacts: Copper Alloy,Gold-Plated Shell: Copper Alloy,Nickel-Plated Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PVC Technical Characteristics Rated Current: 1A Rated Voltage: 300V Rated Temperature: -25°C ~ + 80°C Flame Retardant Grade: UL94V-0 Insulation Resistance: ≥ 100 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: CE, RoHS Production Design Standards:

IPC620

">JST XHP-15 HOUSING INTERNAL WIRING HARNESS CUSTOMIZATION

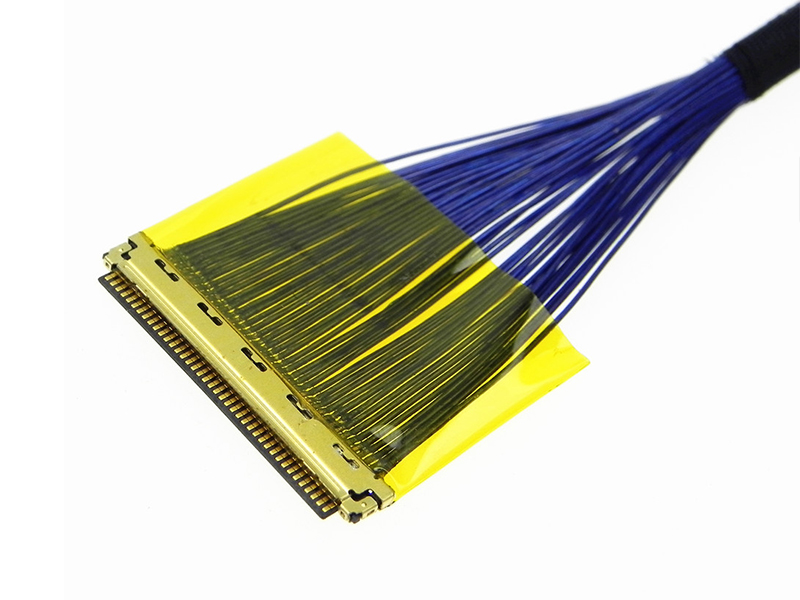

CUSTOMIZED IPEX 20455-40T LVDS CABLE HARNESS DRONE HD IMAGE TRANSMISSION MODULE

Specifications Number of Pins: 40 Pins Key Position: - Left Connector: IPEX 20455-40T Right Connector: IPEX 20455-40T AWG Gauge: 40 AWG Connection Type: Plug and unplug Wires & Cables Length: Customization length Material Housing & Insulation: LCP Contacts: Copper Alloy,Gold-Plated Shell: - Sealing: - Shielding: - Overmolding: - Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: FEP Technical Characteristics Rated Current: 0.5A Rated Voltage: 30V Rated Temperature: -40°C ~ + 80°C Flame Retardant Grade: VW-1 Insulation Resistance: ≥ 1000 MΩ Contact Resistance: ≤10mΩ Durability: ≥ 1000 Times Protection Grade: - Product Certification: - Production Design Standards:

IPC620

">CUSTOMIZED IPEX 20455-40T LVDS CABLE HARNESS DRONE HD IMAGE TRANSMISSION MODULE
